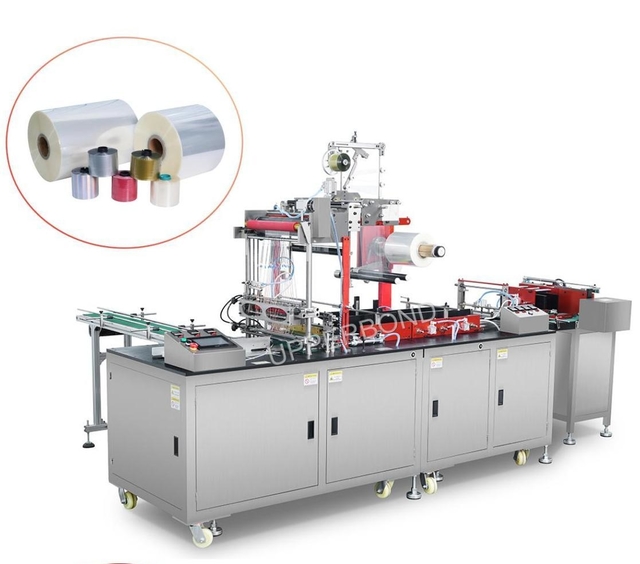

High Speed Film Wrapping Machine for Box Packaging

  • Brand UPPERBOND
  • Product name Film Overwrapping Machine
  • No. UBD200
  • Packing Speed 25–55 boxes/min
  • Machine Weight Approx. 450 kg
  • Terms FOB / CIF / EXW
Yes, l am interested!
This item is collected in wish list
High-Speed Film Wrapping Machine for Box Packaging

High-Speed Film Wrapping Machine for Box Packaging

High Speed Film Wrapping Machine for Box Packaging

Requirement Details

Your message must be between 20-3,000 characters!

Email

Check your email

Phone

Check your phone number

Submit Requirement
This machine is widely used in various industries such as pharmaceuticals, food, health products, cosmetics, daily necessities, stationery, and playing cards. It is suitable for both multi-box bundling and fully enclosed single box wrapping of boxed items.

After wrapping, products benefit from the “Three Protections & Three Enhancements”:

Three Protections: Anti-counterfeiting, moisture-proof, and dust-proof
Three Enhancements: Improved product appearance, enhanced product value, and elevated brand image

Equipped with an imported PLC control system and integrated electromechanical operation, the machine offers reliable performance, easy operation, and high adaptability. It can be connected with cartoning machines, case packers, and other upstream or downstream equipment for fully automated production lines.

  1. HMI with PLC control and real-time fault diagnosis
  2. Servo-driven film feeding with adjustable speed and length
  3. Smooth operation, accurate synchronization, firm sealing
  4. Compact design, easy to operate and maintain, full safety protection
  5. Fully automatic: feeding, wrapping, heat sealing, shaping, counting


Item Specification

Item

Specification

Packing Speed

25–55 boxes/min

Packing Dimensions

Length: 50–270 mm
Width: 40–180 mm
Height: 20–80 mm

Power Supply

220V / 380V 50HZ

Power Consumption

11KW

Air Pressure

0.4-0.6 MPa

Machine Weight

Approx. 450 kg

Packaging Materials

BOPP

Machine Dimensions

3000 mm (L) × 1100 mm (W) × 1850 mm (H)

Heat Seal Temperature

100-150 ℃
